Tanks for on-site waste water pumping stations
Tanks for on-site waste water pumping stations are intended for transporting the following type of waste:
- household,
- drainage water,
- thaw water,
- rain water,
the waste is transported over large distances and to higher altitudes.
Their size and location of all the connectors are each time adopted to actual landscape conditions.
On-site pumping stations are a special case of pumping stations which serve the purpose of pumping waste from selected households located below the collector altitude or gravitational or pressure collector network. They are usually equipped in one submersing pump controlled by floats.
In individual cases there is a possibility of assembling two pump sets depending on the size of the pumps and the required capacity.
Pumping stations may be used for:
- urban housing developments,
- rural housing,
- dispersed housing.

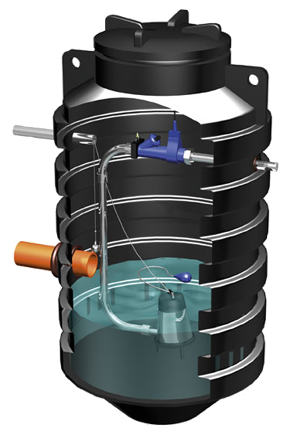

The basic elements of a pumping station include:
- a tank,
- submersing pump,
- piping with cut-off and reverse fittings,
- control system.
The pumping station tanks produced have a diameter of DN 800 and 1000, a conical or oval bottom. Those tanks can also feature as retention tanks for rain water.
A polyethylene 600 mm cover serves as a lid which is intended to foundation on green areas or a load reducing cover with a manhole of an appropriate class for traffic areas. Holes in the tank intended for technology connector are made, according to requests, with an In SITU seal.
The pumping station is equipped in a rotodynamic submersing DB 32, DN 50, DN 65 pump with a shredder and piping together with cut-off and reverse fittings. The device is equipped in liquid level sensors.
Presented in the advertising information and drawings are for illustration only and does not constitute an offer within the meaning of Article. 66 pairs. 1 Civil Code. In order to familiarize with the offer, please contact the sales department's EKO-SYSTEMY
